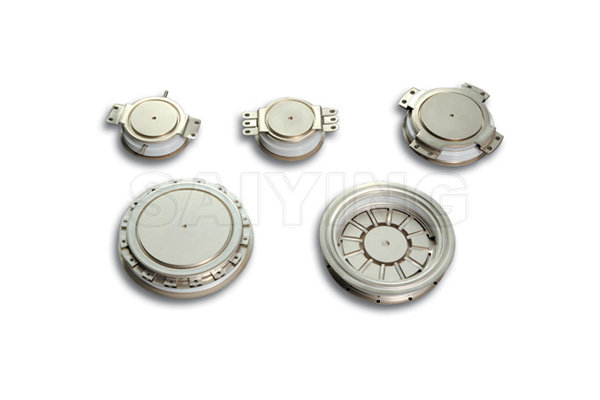

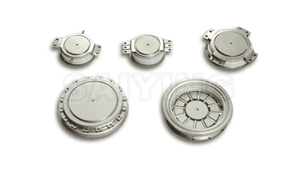

Ceramic housing for IGCT
SIze:
2“-5”
Specifications
Technical
  • Leak rate ：：≤1×10-9 Pam3/s
  • Flatness of copper surface：≤0.005mm
  • Parallelism between copper surfaces：≤0.03mm
  • Concentricity between flange and copper：≤0.5mm
  • Pull test：≥5KN/cm2
  • Temperature cycling：-65℃～200℃ 5circles
  • Plating thickness：2-7μ
    		•
    Main material
  • Ceramic：93.5%min AL2O3
  • Glaze：Color white ,T ≥14 0℃
  • Flange：TU1(OFHC·Cu)or Ni42Fe58 Alloy
  • Copper contact：TU1(OFHC·Cu)
  • Solder：Ag72Cu28 Alloy
  • Gate tube：TU1(OFHC·Cu)or Ni42Fe58 Alloy
    		•
    Model
    Type a
    O.D.Flange    		 b
    O.D.Ceramic    		 c
    I.D.ceramic    		 d
    O.D.Contact    		 h
    Total.Height
    IT50 73 67 55 47 26
    IT70 95 89 71 62.8 26
    IT95-1 126.5 118 95 85 26
    IT95-2 128.5 118 95 85 26
