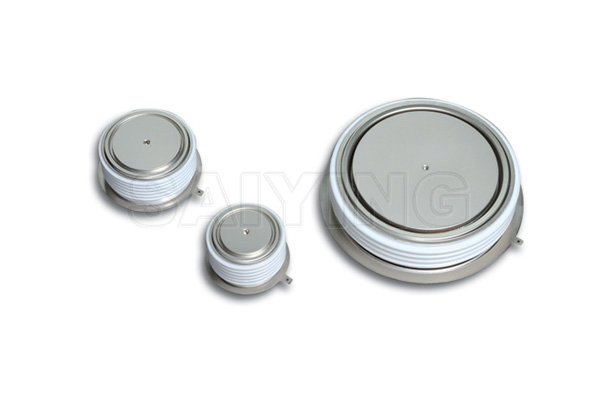

Ceramic housing for SCR, SR
SIze:
1.5”
Specifications
Technical
  • Leak rate ：：≤1×10-9 Pam3/s
  • Flatness of copper surface：≤0.005mm
  • Parallelism between copper surfaces：≤0.03mm
  • Concentricity between flange and copper：≤0.5mm
  • Pull test：≥5KN/cm2
  • Temperature cycling：-65℃～200℃ 5circles
  • Plating thickness：2-7μ
    		•
    Main material
  • Ceramic：93.5%min AL2O3
  • Glaze：Color white ,T ≥14 0℃
  • Flange：TU1(OFHC·Cu)or Ni42Fe58 Alloy
  • Copper contact：TU1(OFHC·Cu)
  • Solder：Ag72Cu28 Alloy
  • Gate tube：TU1(OFHC·Cu)or Ni42Fe58 Alloy
    		•
    Model
    Type a
    O.D.Flange    		 b
    O.D.Ceramic    		 c
    I.D.ceramic    		 d
    O.D.Contact    		 h
    Total.Height    		 Creepage distance
    K(Z)T30cT 40.9 40 31 25 25 ≥30
    K(Z)T40dT 57.3 53 41 34 35 ≥42
    K(Z)T55dT-1 75 67 55.5 47 35 ≥42
    K(Z)T55dT-2 73 67 55 47 35 ≥42
    K(Z)T70dT 98.8 89 70 62.8 32 ≥42
    K(Z)T75dT 101 93 77 65 34 ≥42
    K(Z)T80dT 109 100 81 73 37 ≥42
